Overview
Quick Details

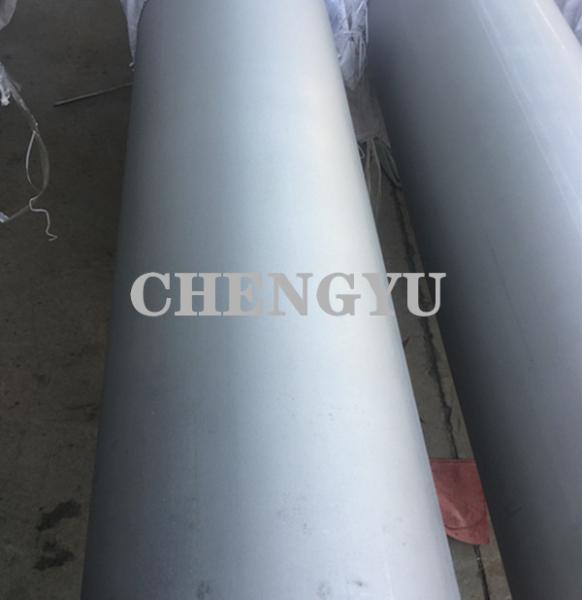

stainless steel welded pipe
| Standard: | ASTM A778 , ASTM A312,JIS G3448, EN10312, CJ/T 151 |
| Material: | 201 301 304 316 304l 316l |
| OD: | 3mm to 1000mm, |
| thickness: | 3mm to 50mm , As customer Required |
| Surface Finish : | Pickled ,Mill |
| Techniques: | Welded |
| Application | Chemical plant, petro-chemical plant, pulp & paper mill, food &
beverage plant, oil & gas
|
| AMERICAN STANDARD CONTRAST FORM | |
| Nominal diameter in inches | External diameter in millimeters | ANSI B36.19 |
| 5s | 10s | Sched 40s | Sched 80s |
| mm | kg/m | mm | kg/m | mm | kg/m | mm | kg/m |
| 1/8" | 10.29 | | | 1.24 | 0.281 | 1.73 | 0.371 | 2.41 | 0.467 |
| 1/4" | 13.72 | | | 1.65 | 0.499 | 2.24 | 0.644 | 3.02 | 0.809 |
| 3/8" | 17.15 | | | 1.65 | 0.64 | 2.31 | 0.858 | 3.2 | 1.118 |
| 1/2" | 21.34 | 1.65 | 0.814 | 2.11 | 1.016 | 2.77 | 1.26 | 3.73 | 1.62 |
| 3/4" | 26.67 | 1.65 | 1.034 | 2.11 | 1.298 | 2.87 | 1.68 | 3.91 | 2.19 |
| 1" | 33.4 | 1.65 | 1.312 | 2.77 | 2.125 | 3.38 | 2.5 | 4.55 | 3.23 |
| 11/4" | 42.16 | 1.65 | 1.674 | 2.77 | 2.732 | 3.56 | 3.38 | 4.85 | 4.46 |
| 11/2" | 48.26 | 1.65 | 1.926 | 2.77 | 3.155 | 3.68 | 4.05 | 5.08 | 5.4 |
| 2" | 60.33 | 1.65 | 2.424 | 2.77 | 3.992 | 3.91 | 5.43 | 5.54 | 7.47 |
| 21/2" | 73.03 | 2.11 | 3.747 | 3.05 | 5.345 | 5.16 | 8.62 | 7.01 | 11.4 |
| 3" | 88.9 | 2.11 | 4.585 | 3.05 | 6.557 | 5.49 | 11.28 | 7.62 | 15.25 |
| 31/2" | 101.6 | 2.11 | 5.272 | 3.05 | 7.526 | 5.74 | 13.56 | 8.18 | 18.62 |
| 4" | 114.3 | 2.11 | 5.945 | 3.05 | 8.496 | 6.02 | 16.06 | 8.56 | 22.29 |
| 5" | 141.3 | 2.77 | 9.639 | 3.4 | 11.74 | 6.55 | 21.76 | 9.52 | 30.92 |
| 6" | 168.3 | 2.77 | 11.514 | 3.4 | 14.037 | 7.11 | 28.23 | 10.97 | 42.52 |
| 8" | 219.08 | 2.77 | 15.049 | 3.76 | 20.334 | 8.18 | 42.49 | 12.7 | 64.57 |
| 10" | 273.05 | 3.4 | 23.028 | 4.19 | 28.29 | 9.27 | 60.24 | 12.7 | 81.46 |
| 12" | 323.85 | 3.96 | 31.806 | 4.57 | 36.633 | 9.52 | 73.76 | 12.7 | 97.36 |
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)
20 feet container load 25tons pipes whose length is under 5.8m
40 feet container load 28tons pipes whose length is under 11.8m
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us. In order to get more
orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we
can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your
design.we will offer you a reasonable price and make samples for
you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before
shipment.
Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15
days for an order with MOQ qty.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry.
If you are very urgent to get the quotation.Please call us or tell
us in your mail, so that we could regard your inquiry priority.
