QUICK DETAIL
Standard:ASTM A789,ASTM A790,EN10215-5 Etc
Grade:1.4410/S32750/2507/1.4462/S31803
Size:OD6mm-1024mm WT0.5-68mm LENGTH 50mm-12000mm
Application:Petroleum,Chemical Industry,Instrument,Machanical
structure industry,need high corrision ability pipe's industry,such
as offshore industry Etc
Test:Hardness Test,Hydrostatic Test,Ultrasonic Test,Eddy Current
Test,Dimensional Checking,Chemical Analysis Etc
Inspection:100%
Price Term:FOB,CFR,CIF or as negotiation

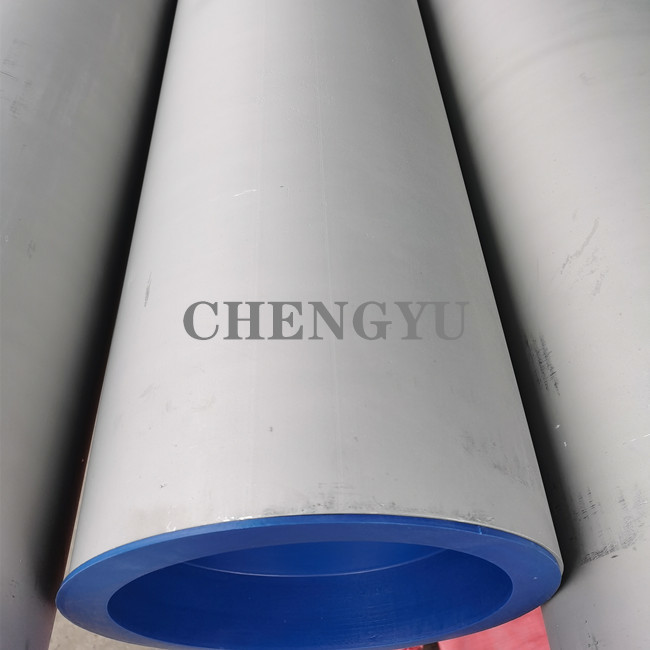

| Name | S31803 2205 SUPER DUPLEX STAINLESS STEEL SEAMLESS PIPE A790 A789
FOR INDUSTRIAL |
| Items | ROUND SS SMLS PIPE |
| Standard | ASTM ,GB,DIN AISI |
| Material Grade | S31803 |
| 2205 |
| Outer Diameter | Round pipe9.5mm--813mm |
| Thickness | 0.8mm - 34mm |
| Length | 5.8m,6m, or as customers' request |
| Tolerance | a) Outer Diameter: +/- 0.2mm |
| b) Thickness: +/- 0.02mm |
| c) Length: +/- 5mm |
| Surface | annealing,pickling |
| sandblasting |
| Application | industry,exhausting,water |
| Test | Squash test, extended test, water pressure test,heat treatment, NDT |
| Chemical Composition of Material | Material | 201 | 316L | 304 |
| C | ≤0.15 | ≤0.035 | ≤0.08 |
| Si | ≤1.00 | ≤1.00 | ≤1.00 |
| Mn | 5.5-7.5 | 2 | ≤2.00 |
| P | ≤0.06 | ≤0.045 | ≤0.045 |
| S | ≤0.03 | ≤0.03 | ≤0.03 |
| Cr | 16-18 | 16-18 | 18-20 |
| Ni | 3.5-5.5 | 10-14 | 8-11 |
| Mechanical Property | Material Item | 201 | 202 | |
| Tensile Strength | ≥535 | ≥520 | |
| Yield Strength | ≥245 | ≥205 | |
| Extension | ≥30% | ≥30% | |
| Hardness (HV) | <253 | <253 | |
| ASTM Chemical Composition (%,max) |
| Grade | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Ni ≤ | Cr ≤ | Mo | Others |
| S31803 | 0.03 | 1.00 | 2 | 0.02 | 0.02 | 4.5-6.5 | 21.00-23.00 | 2.50-3.50 | N:0.08-0.2 |
| S32750 | 0.03 | 0.80 | 1.2 | 0.03 | 0.015 | 6.0-8.0 | 24.00-26.00 | 3.00-5.00 | N:0.24-0.32 |
| Physical Properties |
| Grade | Y.S.Mpa min | T.S.Mpa min | Elongation% | Hardness HRC | / |
| S31803 | 450 | 620 | 25 | 20 | / |
| S32750 | 550 | 800 | 15 | 20 | |
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us. In order to get more
orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we
can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your
design.we will offer you a reasonable price and make samples for
you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before
shipment.
Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15
days for an order with MOQ qty.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry.
If you are very urgent to get the quotation.Please call us or tell
us in your mail, so that we could regard your inquiry priority.
